DZ-120P Cartoning Machine-Application:

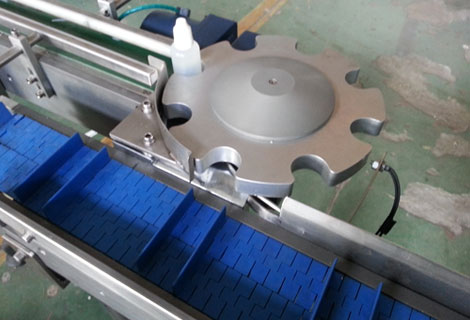

This machine is suitable for bottle(round,square bottle) , into carton automatically. On line product feeding and detecting, carton opening and forming ,products and leaflet pushing into carton , printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
Features:
1.International famous brand of electrical component such as PLC touch screen, frequency inverter, etc.
2.Adopt human-machine operation system.
3.Automatically stop when machine is overload.
4.Automatically reject lacking of package product and leaflet.
5.Automatically display trouble,Alarm and count finished products.
6.Stable performance,operation is easy.
Main Technical Parameters
| Item | Parameters | |
| Encasing speed | 30-120 boxes /min | |
| Box | Quality requirement | 250-350g/m2[Base on carton size] |
| Dimension range(L×W×H) | (65-160)mm×(30-85)mm×(15-50)mm | |
| leaflet | Unfold leaflet specification | (80-230)x(90-170)mm |
| Fold range | (1-4) fold | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min | |
| Power supply | 380v 50HZ | |
| Main motor power | 0.75kw | |
| Machine dimension(L×W×H) | 3400mm×1200mm×1800mm | |
| Machine weight | 1200kg | |
BT-2000L Model overwrapper machine
Suitable for packing carton with bopp film
Suitable for connecting other packing machine together
| SIZE RANGE (IN MM) | MIN. STANDARD | MAX. STANDARD |
| Length (L) | 40 | 200 |
| Width (W) | 30 | 140 |
| Height (H) | 10 | 80 |
| Maximum output * | 40-80strokes per minute | |
| Film width | 60-260MM | |
| Voltage | 220V 50HZ ,ONE PHASE | |
| Power | 4KW | |
| N.weight | 900Kg | |
| Film-roll diameter max. | 320 mm | |
| Packaging material | Polypropylene,Bopp | |
| Basic configuration | HOPPER INFEED | |
| OVERWRALL DIMENSION | 2600X960X1600MM | |
| Optional accessories | PLC controller ,touch screen, printmark registration, Date printer, safety cover, conveyor belt. | |
* depending on product, machine configuration and packaging material
 |
 |
 |
